rect元素元素元素函数可用set和show规则自定义样式。
元素
元素函数可用
set和show规则自定义样式。A rectangle with optional content.

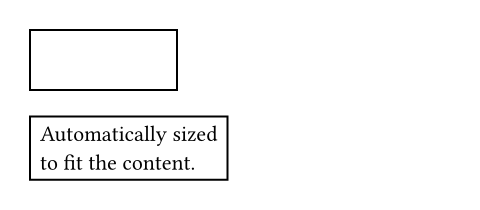

Example
// Without content.
#rect(width: 35%, height: 30pt)
// With content.
#rect[
Automatically sized \
to fit the content.
]
参数参数参数是传给函数的输入，写在函数名后的括号中。
参数
参数是传给函数的输入，写在函数名后的括号中。
width
The rectangle's width, relative to its parent container.
默认值： auto
height
The rectangle's height, relative to its parent container.
默认值： auto
fill
How to fill the rectangle.
When setting a fill, the default stroke disappears. To create a rectangle with both fill and stroke, you have to configure both.
默认值： none
展开例子

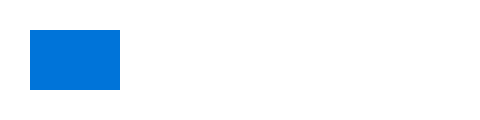

#rect(fill: blue)
stroke
How to stroke the rectangle. This can be:
noneto disable strokingautofor a stroke of1pt + blackif and if only if no fill is given.- Any kind of stroke
- A dictionary describing the stroke for each side inidvidually. The
dictionary can contain the following keys in order of precedence:
top: The top stroke.right: The right stroke.bottom: The bottom stroke.left: The left stroke.x: The horizontal stroke.y: The vertical stroke.rest: The stroke on all sides except those for which the dictionary explicitly sets a size.
默认值： auto
展开例子

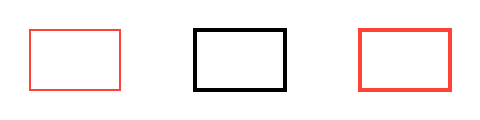

#stack(
dir: ltr,
spacing: 1fr,
rect(stroke: red),
rect(stroke: 2pt),
rect(stroke: 2pt + red),
)
radius可用set规则可用set规则可用set规则设置参数，更改后续调用时的默认值。
可用set规则
可用set规则
可用
set规则设置参数，更改后续调用时的默认值。How much to round the rectangle's corners, relative to the minimum of the width and height divided by two. This can be:
- A relative length for a uniform corner radius.
- A dictionary: With a dictionary, the stroke for each side can be set
individually. The dictionary can contain the following keys in order
of precedence:
top-left: The top-left corner radius.top-right: The top-right corner radius.bottom-right: The bottom-right corner radius.bottom-left: The bottom-left corner radius.left: The top-left and bottom-left corner radii.top: The top-left and top-right corner radii.right: The top-right and bottom-right corner radii.bottom: The bottom-left and bottom-right corner radii.rest: The radii for all corners except those for which the dictionary explicitly sets a size.
默认值： 0pt
展开例子

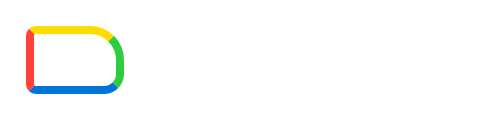

#set rect(stroke: 4pt)
#rect(
radius: (
left: 5pt,
top-right: 20pt,
bottom-right: 10pt,
),
stroke: (
left: red,
top: yellow,
right: green,
bottom: blue,
),
)
inset可用set规则可用set规则可用set规则设置参数，更改后续调用时的默认值。
可用set规则
可用set规则
可用
set规则设置参数，更改后续调用时的默认值。How much to pad the rectangle's content. See the box's documentation for more details.
默认值： 5pt
outset可用set规则可用set规则可用set规则设置参数，更改后续调用时的默认值。
可用set规则
可用set规则
可用
set规则设置参数，更改后续调用时的默认值。How much to expand the rectangle's size without affecting the layout. See the box's documentation for more details.
默认值： 0pt
