gradient

A color gradient.

Typst supports linear gradients through the gradient.linear function, radial gradients through the gradient.radial function, and conic gradients through the gradient.conic function.

A gradient can be used for the following purposes:

• As a fill to paint the interior of a shape: rect(fill: gradient.linear(..))
• As a stroke to paint the outline of a shape: rect(stroke: 1pt + gradient.linear(..))
• As the fill of text: set text(fill: gradient.linear(..))
• As a color map you can sample from: gradient.linear(..).sample(0.5)

Examples

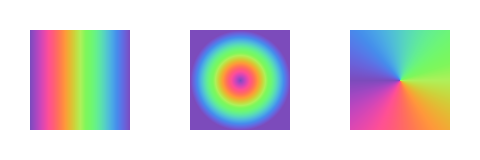

#stack(
  dir: ltr,
  spacing: 1fr,
  square(fill: gradient.linear(..color.map.rainbow)),
  square(fill: gradient.radial(..color.map.rainbow)),
  square(fill: gradient.conic(..color.map.rainbow)),
)

Gradients are also supported on text, but only when setting the relativeness to either auto (the default value) or "parent". To create word-by-word or glyph-by-glyph gradients, you can wrap the words or characters of your text in boxes manually or through a show rule.

#set text(fill: gradient.linear(red, blue))
#let rainbow(content) = {
  set text(fill: gradient.linear(..color.map.rainbow))
  box(content)
}

This is a gradient on text, but with a #rainbow[twist]!

Stops

A gradient is composed of a series of stops. Each of these stops has a color and an offset. The offset is a ratio between 0% and 100% or an angle between 0deg and 360deg. The offset is a relative position that determines how far along the gradient the stop is located. The stop's color is the color of the gradient at that position. You can choose to omit the offsets when defining a gradient. In this case, Typst will space all stops evenly.

Relativeness

The location of the 0% and 100% stops depends on the dimensions of a container. This container can either be the shape that it is being painted on, or the closest surrounding container. This is controlled by the relative argument of a gradient constructor. By default, gradients are relative to the shape they are being painted on, unless the gradient is applied on text, in which case they are relative to the closest ancestor container.

Typst determines the ancestor container as follows:

• For shapes that are placed at the root/top level of the document, the closest ancestor is the page itself.
• For other shapes, the ancestor is the innermost block or box that contains the shape. This includes the boxes and blocks that are implicitly created by show rules and elements. For example, a rotate will not affect the parent of a gradient, but a grid will.

Color spaces and interpolation

Gradients can be interpolated in any color space. By default, gradients are interpolated in the Oklab color space, which is a perceptually uniform color space. This means that the gradient will be perceived as having a smooth progression of colors. This is particularly useful for data visualization.

However, you can choose to interpolate the gradient in any supported color space you want, but beware that some color spaces are not suitable for perceptually interpolating between colors. Consult the table below when choosing an interpolation space.

Direction

Some gradients are sensitive to direction. For example, a linear gradient has an angle that determines its direction. Typst uses a clockwise angle, with 0° being from left to right, 90° from top to bottom, 180° from right to left, and 270° from bottom to top.

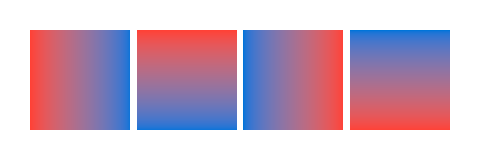

#stack(
  dir: ltr,
  spacing: 1fr,
  square(fill: gradient.linear(red, blue, angle: 0deg)),
  square(fill: gradient.linear(red, blue, angle: 90deg)),
  square(fill: gradient.linear(red, blue, angle: 180deg)),
  square(fill: gradient.linear(red, blue, angle: 270deg)),
)

Presets

Typst predefines color maps that you can use with your gradients. See the color documentation for more details.
