grid

元素

元素

元素函数可用set和show规则自定义样式。

Arranges content in a grid.

The grid element allows you to arrange content in a grid. You can define the number of rows and columns, as well as the size of the gutters between them. There are multiple sizing modes for columns and rows that can be used to create complex layouts.

The sizing of the grid is determined by the track sizes specified in the arguments. Because each of the sizing parameters accepts the same values, we will explain them just once, here. Each sizing argument accepts an array of individual track sizes. A track size is either:

• auto: The track will be sized to fit its contents. It will be at most as large as the remaining space. If there is more than one auto track which, and together they claim more than the available space, the auto tracks will fairly distribute the available space among themselves.

• A fixed or relative length (e.g. 10pt or 20% - 1cm): The track will be exactly of this size.

• A fractional length (e.g. 1fr): Once all other tracks have been sized, the remaining space will be divided among the fractional tracks according to their fractions. For example, if there are two fractional tracks, each with a fraction of 1fr, they will each take up half of the remaining space.

To specify a single track, the array can be omitted in favor of a single value. To specify multiple auto tracks, enter the number of tracks instead of an array. For example, columns: 3 is equivalent to columns: (auto, auto, auto).

Examples

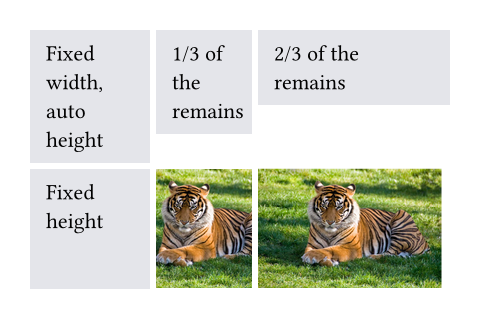

The example below demonstrates the different track sizing options.

// We use `rect` to emphasize the
// area of cells.
#set rect(
  inset: 8pt,
  fill: rgb("e4e5ea"),
  width: 100%,
)

#grid(
  columns: (60pt, 1fr, 2fr),
  rows: (auto, 60pt),
  gutter: 3pt,
  rect[Fixed width, auto height],
  rect[1/3 of the remains],
  rect[2/3 of the remains],
  rect(height: 100%)[Fixed height],
  image("tiger.jpg", height: 100%),
  image("tiger.jpg", height: 100%),
)

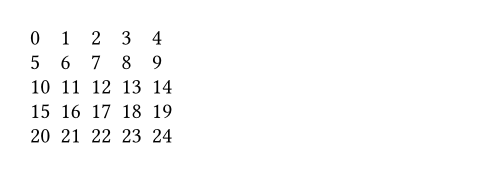

You can also spread an array of strings or content into a grid to populate its cells.

#grid(
  columns: 5,
  gutter: 5pt,
  ..range(25).map(str)
)
