block
元素
元素
元素函数可用setshow规则自定义样式。

A block-level container.

Such a container can be used to separate content, size it, and give it a background or border.

Examples

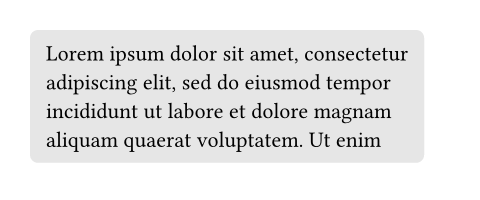

With a block, you can give a background to content while still allowing it to break across multiple pages.

#set page(height: 100pt)
#block(
  fill: luma(230),
  inset: 8pt,
  radius: 4pt,
  lorem(30),
)
Preview

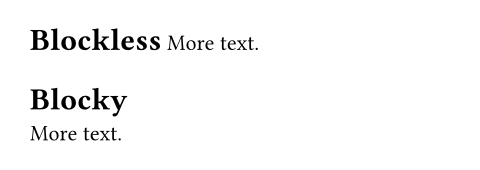

Blocks are also useful to force elements that would otherwise be inline to become block-level, especially when writing show rules.

#show heading: it => it.body
= Blockless
More text.

#show heading: it => block(it.body)
= Blocky
More text.
Preview

参数
参数
参数是传给函数的输入,写在函数名后的括号中。

width
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

The block's width.

默认值:

auto

展开例子

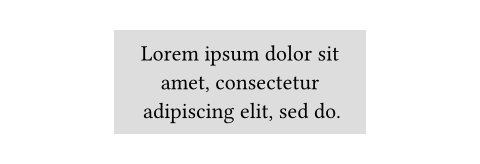

#set align(center)
#block(
  width: 60%,
  inset: 8pt,
  fill: silver,
  lorem(10),
)
Preview

height
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

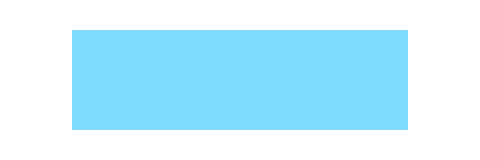

The block's height. When the height is larger than the remaining space on a page and breakable is true, the block will continue on the next page with the remaining height.

默认值:

auto

展开例子
#set page(height: 80pt)
#set align(center)
#block(
  width: 80%,
  height: 150%,
  fill: aqua,
)
Preview

breakable
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

Whether the block can be broken and continue on the next page.

默认值:

true

展开例子

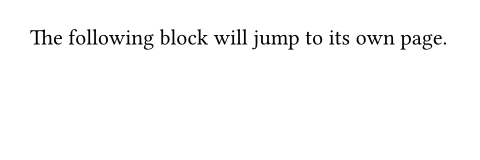

#set page(height: 80pt)
The following block will
jump to its own page.
#block(
  breakable: false,
  lorem(15),
)
Preview

fill
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

The block's background color. See the rectangle's documentation for more details.

默认值:

none

stroke
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

The block's border color. See the rectangle's documentation for more details.

默认值:

none

radius
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

How much to round the block's corners. See the rectangle's documentation for more details.

默认值:

0pt

inset
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

How much to pad the block's content. See the box's documentation for more details.

默认值:

0pt

outset
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

How much to expand the block's size without affecting the layout. See the box's documentation for more details.

默认值:

0pt

spacing
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

The spacing around this block. This is shorthand to set above and below to the same value.

默认值:

1.2em

展开例子

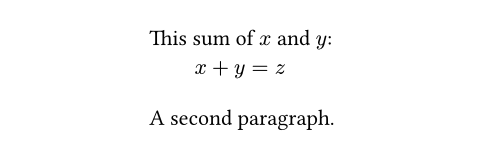

#set align(center)
#show math.equation: set block(above: 8pt, below: 16pt)

This sum of $x$ and $y$:
$ x + y = z $
A second paragraph.
Preview

above
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

The spacing between this block and its predecessor. Takes precedence over spacing. Can be used in combination with a show rule to adjust the spacing around arbitrary block-level elements.

默认值:

1.2em

below
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

The spacing between this block and its successor. Takes precedence over spacing.

默认值:

1.2em

clip
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

Whether to clip the content inside the block.

默认值:

false

body
位置参数
位置参数
位置参数按顺序传入,不带参数名。
可用set规则
可用set规则
可用set规则设置参数,更改后续调用时的默认值。

The contents of the block.

默认值:

none
